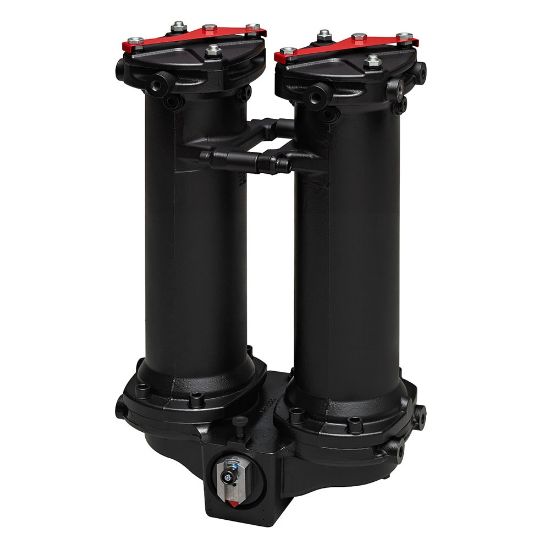

Low Pressure In-Line Duplex Filter - DF65 Series - DF65602QIVT1KR321

Name: Low Pressure In-Line Duplex Filter - DF65 Series - DF65602QIVT1KR321
SKU: DF65602QIVT1KR321

The DF65 duplex filter has been designed especially for applications where space is limited. The unique design allows the installation of the filter in almost any position. Suitable for a max. flow 800 L/min and a max. pressure of 25 bar.

Availability:

Backordered

SKU DF65602QIVT1KR321

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	0 to 620 l/min	Micron Rating	2 µm
Connection Type	SAE flange 2" 3000-M	Filter Element Type	02QI Microglass
Options	With Bypass	Indicator Type	Electrical NO/NC
Bypass Valve Pressure Rating	3.5 bar	Seal Material	Fluorelastomer
Pressure Rating	25 bar	Division	Hydraulic & Industrial Process Filtration Division EMEA
Mounting Type	Inline	Housing Material	Cast Iron (GSJ)
Operating Temperature	-20 to 120 °C

Product resources

Literature and Reference Materials

DF65 Series Brochure (PDF)
