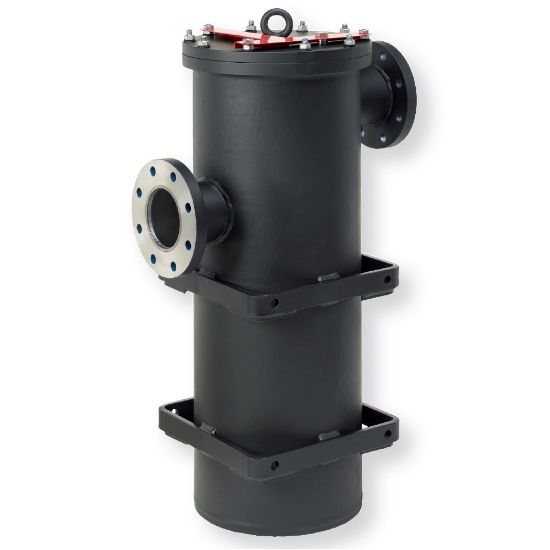

Picture of Low Pressure In-Line Filter - SF1040 Series - SF1040205QVM3HD80C1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure In-Line Filter - SF1040 Series - SF1040205QVM3HD80C1

The SF1040 is a low pressure Multi-purpose filter for gas and high flow fluid systems.
Suitable for flows up to 1400 l/min and pressures up to 10 bar.
Availability:
Backordered
SKU SF1040205QVM3HD80C1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Bypass Valve Pressure Rating2.0 barMicron Rating5 µm
Indicator Pressure Setting1.5 barFlow Rate0 to 1100 l/min
Indicator TypeVisualConnection TypeDN80/PN16 C-port (outlet on front)
Filter Element Type05Q MicroglassOptionsWith Bypass
Housing MaterialSteelPressure Rating10 bar
Operating Temperature-20 to 120 °CFlow Rate1400 L/min
Seal MaterialFluorelastomerDivisionHydraulic & Industrial Process Filtration Division EMEA
Mounting TypeInline
Product resources

Literature and Reference Materials
