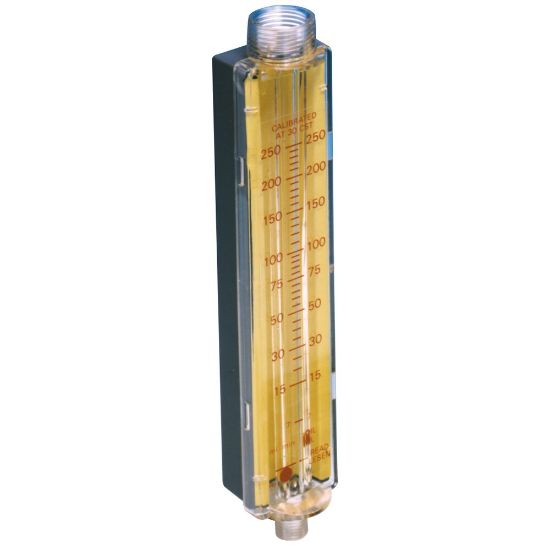

Low Pressure Mechanical Flowmeters – Loflow Series - LF801411

Name: Low Pressure Mechanical Flowmeters – Loflow Series - LF801411
SKU: LF801411

The Loflow Series comprises a range of inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 0.01 – 22 LPM. Maximum allowable working pressure: 10 bar.

Availability:

Backordered

SKU LF801411

POR

Qty:

Products specifications

Attribute name	Attribute value
Housing Material	Stainless Steel	For Fluid Type	Water
Flow Rate	0.06 to 0.55 l/min	Brand	PARKER
Technology	Filtration	Materials of Construction	Stainless Steel
Ingress Protection Rating	N/A	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	Industry	Industrial Manufacturing Equipment
For Fluid Type	Water	Weight	0.14 kg
Product Style	Flow Meter	Product Type	Condition Monitor
Seal Material	n/a	Communication Interface	n/a
Operating Pressure	10 bar	Maximum Fluid Temperature	140 °F
Port Type	BSPT	Operating Humidity	n/a
ATEX Specifications Met	n/a	Specifications Met	Pressure Directive
Cycle Time	n/a	Signal Output	n/a
Electrical Requirements	n/a	Minimum Fluid Temperature	+5 °C
Width	40 mm	Sensing Method	Variable Orifice Flow Meter
Flow Rate	0.06 to 0.55 L/min	Body Material	Grillon TR55
Operating Temperature	60 °C	Height	39 mm
Length	216 mm	Accuracy	+/- 2% typical FSD
Diameter	n/a	Port Size	1/4 to 3/4 inch

Product resources

Literature and Reference Materials

Loflow_bulletin.pdf (PDF)
