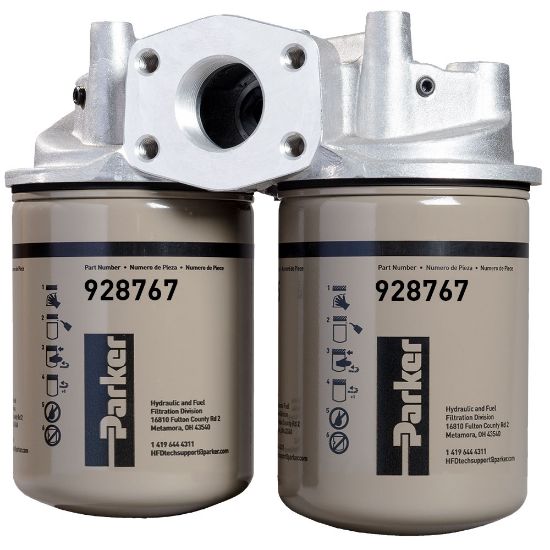

Low Pressure Spin-On Filters 12AT/50AT Series - 80AT120BBPGY32H

Name: Low Pressure Spin-On Filters 12AT/50AT Series - 80AT120BBPGY32H
SKU: 80AT120BBPGY32H

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:

Backordered

SKU 80AT120BBPGY32H

POR

Qty:

Products specifications

Attribute name	Attribute value
Filter Element	20 micron microglass	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Flow Rate (gpm)	72	Bypass Valve (psi)	25 psid bypass
Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Seal Material	Nitrile
Indicator Type	Sold separately	Compatible Element	928767
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.	Bypass Valve Pressure Rating	25 psid
Maximum Operating Temperature	107	Housing Material	Low Carbon Steel
Indicator Type	Sold separately	Pressure Rating	150
Mounting Type	Inline	Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
Flow Rate	272	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Nitrile	Indicator Pressure Setting	20
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element Type	20 micron microglass
Weight	11.3
