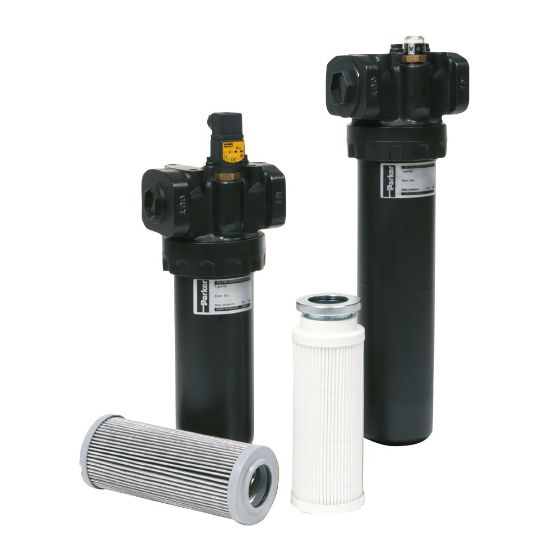

Picture of Medium Pressure In-Line Filter - 45M Series - 45M102QEBPKG161

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure In-Line Filter - 45M Series - 45M102QEBPKG161

The 45M Series of medium pressure filters offer an ideal solution to the problem of protecting system components at lower pressures. The robust filter housing allows the 45M product to be applied in harsh environments.
Availability:
Backordered
SKU 45M102QEBPKG161
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileOptionsStandard
Indicator TypeNo indicator, port pluggedMicron Rating2 µm
Filter Element Type02QE EcoglassIndicator Pressure SettingNo indicator
Bypass Valve Pressure Rating3.5 barConnection TypeG1
Height237 mmFlow Rate80 l/min
Flow Capacity80 l/minFilter Element02QE Ecoglass
Port Connection TypeG1Temperature Characteristics-40 / +100°C
BrandPARKERMounting TypeInline
DivisionHydraulic & Industrial Process Filtration Division EMEADivisionHydraulic & Industrial Process Filtration Division EMEA
TechnologyHydraulicsProduct TypeHydraulic Filter
For Fluid TypeHydraulic OilIndustryIndustrial Manufacturing Equipment
Specifications MetDegree of filtration determined by multipass test according to ISO 16889.Housing MaterialIron/Steel
Product Series45M SeriesApplicationMobile Construction Equipment
Operating Pressure40Operating Temperature-40 to 100 °C (Seal Material Nitrile)
