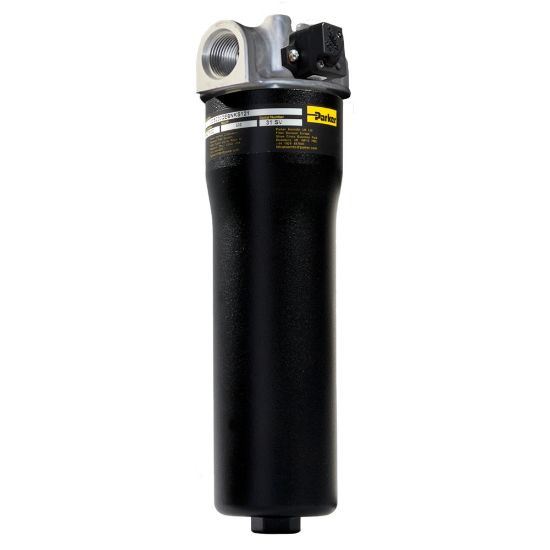

Picture of Medium Pressure Inline Filter 12CS/50CS Series - 12CS205QEBMLGN121

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Medium Pressure Inline Filter 12CS/50CS Series - 12CS205QEBMLGN121

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.
Availability:
Backordered
SKU 12CS205QEBMLGN121
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
OptionsNo optionsFlow Rate25 gpm (95 lpm)
Micron Rating05Q MicroglassSeal MaterialNitrile
Indicator TypeVisual with push to test, leftPort Connection Type3/4" NPT integral threads
Bypass Valve Pressure Rating25 psid (1.7 bar)Weight3 lbs (1.4 kg)
OptionsNo optionsFlow Rate95.0 L/min
Port Type3/4" NPT integral threadsProduct TypeHydraulic Filter
Micron Rating05Q MicroglassProduct StyleHydraulic Filter
Seal MaterialNitrileFor Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator TypeVisual with push to test, leftMounting StyleInline
Pressure Rating34.5 barHousing MaterialBowl - wrought aluminum; Head - cast aluminum
Compatible Element940764QDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Filter Element TypeCorelessIndicator Pressure Setting1.7 bar
Bypass Valve Pressure Rating25.0 psidMaximum Operating Temperature225.0 °F
