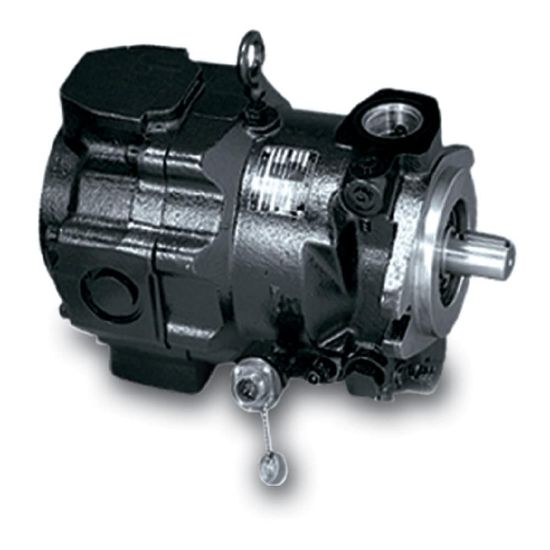

Medium Pressure/Super Charged Piston Pump - PAVC Series - PAVC PISTON PUMP

Name: Medium Pressure/Super Charged Piston Pump - PAVC Series - PAVC PISTON PUMP
SKU: PAVC PISTON PUMP

Parker PAVC Medium Pressure/Super Charged Hydraulic Piston Pumps provide reliable high-speed operation. With a pressure rating of 3,000 psi, they are ideal for a variety of medium pressure mobile and industrial applications.

Availability:

Backordered

SKU PAVC PISTON PUMP

POR

Qty:

Products specifications

Attribute name	Attribute value
Energy Recovery Capability	No	Maximum Fluid Temperature	160
Charge Pump Included	Yes	Drain Option	Yes
Operating Pressure	210	Pump Type	Variable
Technology	Hydraulics	Port Connection	SAE
Flow Rate	260	Thru-Drive Capability	Yes
Minimum Fluid Temperature	-40	Port Type	Straight Threaded
Circuit Path	Open	Maximum Flow Rate	260
Maximum Kinematic Viscosity	4000	Configuration	Tandem
Direction of Rotation	Counterclockwise	Filter Included	No
Maximum Displacement	6.1	Weight	40 to 110
Displacement	100	Maximum Vacuum Flow Rate	n/a
Maximum Noise Level	79	Body Material	Cast Iron
Media	Hydraulic Fluids	Division	Hydraulic Pump and Power Systems Division
Maximum Operating Speed	2600	Maximum Operating Pressure	3000
Sensor Type	n/a	Radial Load Capacity	230
Port Location	Rear Ports	Minimum Kinematic Viscosity	80
Shaft Type	SAE	Control Method	Load Sense
For Fluid Type	Phosphate-ester	Mounting Option	SAE
