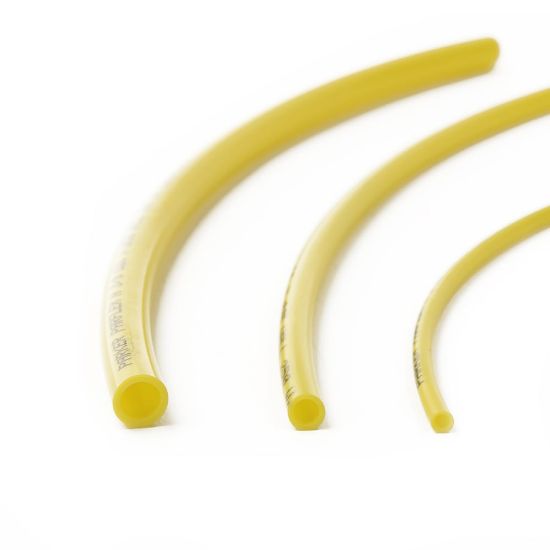

Nylon Tubing - N-3-025-YEL

Name: Nylon Tubing - N-3-025-YEL
SKU: N-3-025-YEL

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Availability:

Backordered

SKU N-3-025-YEL

POR

Qty:

Products specifications

Attribute name	Attribute value
Order Size	3/16	Standard Pack Qty (ft)	250
Color	Yellow	Division	Parflex Division
Media	Air	Maximum Operating Pressure	250
Cover Material	n/a	Specifications Met	N/A
Compatible Fitting	Compression	Tube Material	Polyamide (PA)
Color	Yellow	Length per Package	250
Maximum Operating Temperature	200	Size	-3
Weight	0.006	Application	Lubrication
Minimum Bend Radius	0.63	Tube Inside Diameter	0.138
Tube Outside Diameter	3/16	Minimum Burst Pressure	1000
Minimum Operating Temperature	-54
