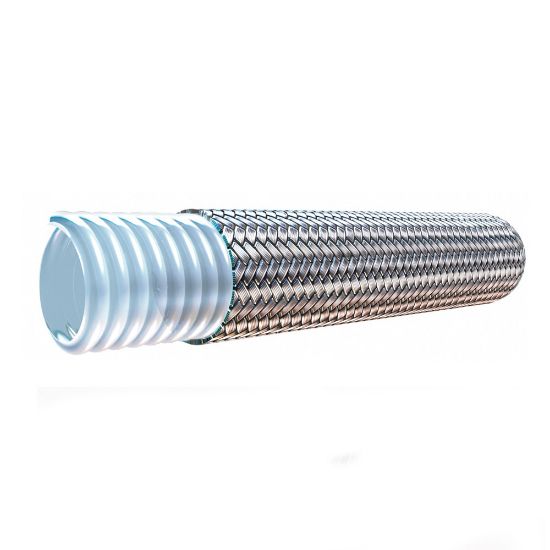

OBSOLETE: Heavy Wall Convoluted PTFE Hose with 316 Stainless Steel Braid - SCWV/SCBV - 12-SCWV

Name: OBSOLETE: Heavy Wall Convoluted PTFE Hose with 316 Stainless Steel Braid - SCWV/SCBV - 12-SCWV
SKU: 12-SCWV

Note: This product is no longer available - please contact us for further assistance.

Availability:

Backordered

SKU 12-SCWV

POR

Qty:

Products specifications

Attribute name	Attribute value
Hose Style	Natural, Stainless Steel Braid	Hose I.D. (inch)	3/4
Division	Parflex Division	Media	Air
Application	Fluid Handling	Cover Material	n/a
Compatible Fitting	PAGE Series	Specifications Met	FDA (Core Tube)
Design Factor	4:1	Vacuum Pressure Rating	28
Maximum Operating Temperature	500	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Heavy Wall
Hose Reinforcement Material	Braid of 316 Stainless Steel	Minimum Operating Temperature	-100
Size	-12	Inside Diameter	3/4
Weight	0.31	Outside Diameter	1.050
Minimum Bend Radius	2-3/4	Maximum Operating Pressure	1200
