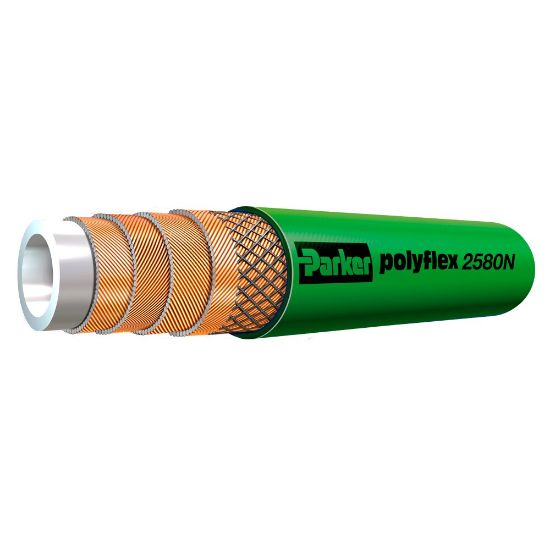

Picture of OBSOLETE: High Pressure Water Jetting Hose - 2580N - 2580N-12V13

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OBSOLETE: High Pressure Water Jetting Hose - 2580N - 2580N-12V13

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU 2580N-12V13
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)3/4DivisionParflex Division
MediaChemicalsHose Inner Tube MaterialPolyamide (PA)
Cover MaterialPolyamide (PA)Inside Diameter3/4
Design Factor2.5:1ApplicationShipbuilding
Maximum Operating Temperature158Specifications MetDIN 1829-2
Minimum Operating Temperature14Weight1.18
Outside Diameter1.290Compatible FittingBL Series
Minimum Bend Radius6-3/4Maximum Operating Pressure17400
Hose Reinforcement Material4 Spirals and 2 Open Layers of High Tensile Steel Wire
