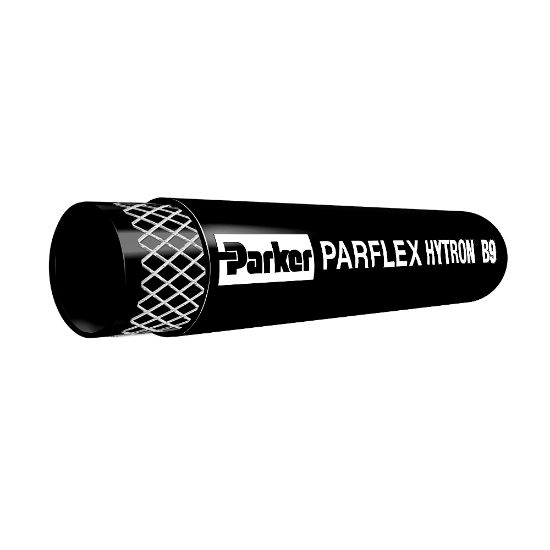

Picture of OBSOLETE: Transfer Hose - B9 - B910BK

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OBSOLETE: Transfer Hose - B9 - B910BK

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU B910BK
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ColorBlackHose I.D. (inch)0.625
Weight0.30 kg/mCompatible Fitting56 Series
Cover MaterialPolyurethane Specially FormulatedDivisionParflex Division
MediaLubricants (Oils)Hose Inner Tube MaterialSpecially Formulated Polyurethane
Outside Diameter23.4 mmMinimum Operating Temperature-40 °F
Specifications MetN/ADesign Factor4:1
Maximum Operating Pressure17 barHose Reinforcement MaterialFiber
Inside Diameter5/8 inchMaximum Operating Temperature93 °C
Vacuum Pressure Rating711.2 mm-HgSize-10
ApplicationPneumaticsMinimum Bend Radius102 mm
