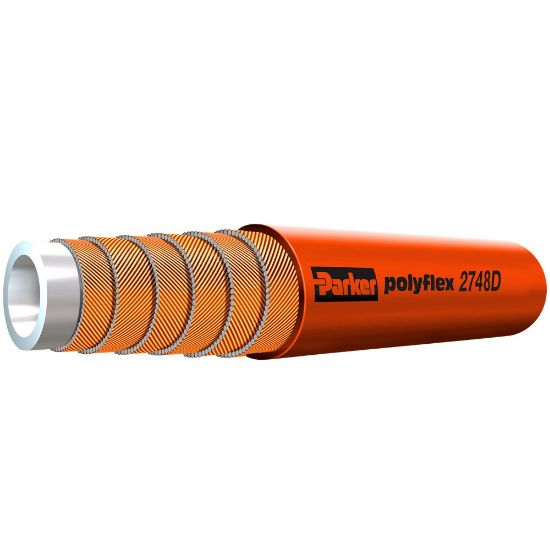

Picture of OBSOLETE: Water Jetting Hose - 35,000 psi and up - 2748D-05V35

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OBSOLETE: Water Jetting Hose - 35,000 psi and up - 2748D-05V35

Note: This product is no longer available – please contact us for further assistance.
Availability:
Backordered
SKU 2748D-05V35
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)5/16Maximum Working Pressure (psi)40,600
NotesObsoleteDivisionParflex Division
MediaChemicalsCover MaterialPolyamide (PA)
Inside Diameter5/16Weight0.56
Design Factor2.5:1Maximum Operating Temperature158
Specifications MetDIN 1829-2Minimum Operating Temperature14
Hose Inner Tube MaterialPolyoxymethylene (POM)Size-5
Minimum Bend Radius9Compatible Fitting2X Series
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireApplicationHigh Pressure Cleaning
Outside Diameter0.680Maximum Operating Pressure40600
