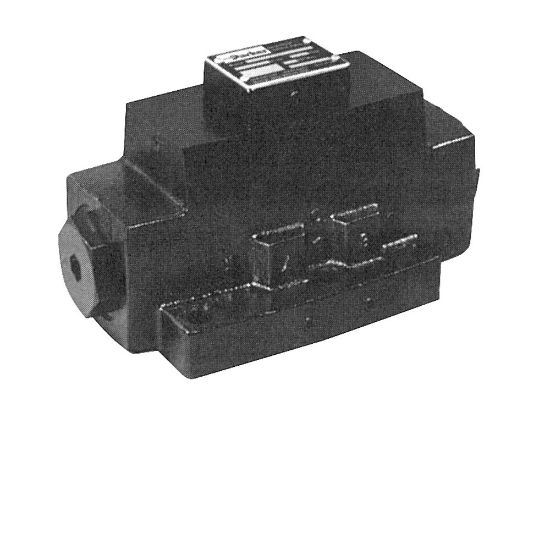

Oil Operated Directional Control Valve - D10P Series - D10P11H2N7

Name: Oil Operated Directional Control Valve - D10P Series - D10P11H2N7
SKU: D10P11H2N7

Parker’s Series D10P directional control valves are 5-chamber, pilot operated valves.

Availability:

Backordered

SKU D10P11H2N7

POR

Qty:

Products specifications

Attribute name	Attribute value
Size	NFPA D10, CETOP 10, DIN NG32	Maximum Operating Pressure	3000 PSI
Mounting Type	Subplate	Maximum Flow Rate	250 GPM
Size	NFPA D10	Spool Code	4-Way
Seal Material	Nitrile	Weight	75.7
Mounting Type	Subplate	Actuation Type	Hydraulic Pressure
Body Material	Gray Iron	Maximum Operating Pressure	3000
Division	Hydraulic Valve Systems Division	Minimum Operating Temperature	-4
Spool Position	Single Operator	Maximum Flow Rate	250
Valve Type	Oil Operated Directional Control Valve	Maximum Operating Temperature	140

Product resources

Literature and Reference Materials

Oil Operated Directional Control Valve Catalog - D10P Series (PDF)
