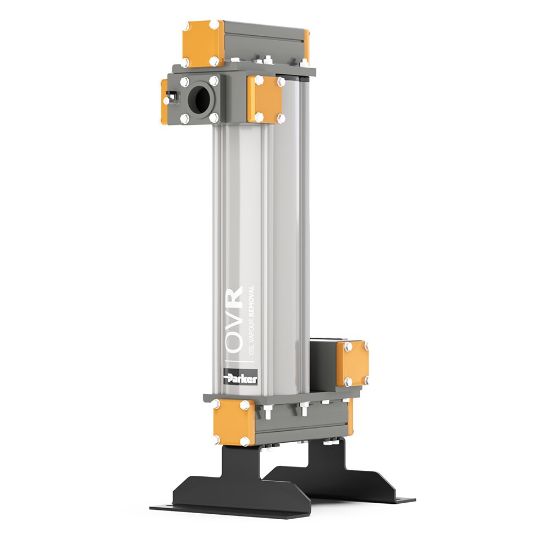

Picture of OIL-X OVR Oil Vapour Reduction Filter - OVRP300HGXX

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

OIL-X OVR Oil Vapour Reduction Filter - OVRP300HGXX

Compact, modular construction oil vapour removal filters designed to reduce oil vapour when industrial applications require compressed air to meet ISO8573-1 Class 0 or Class 1.
Availability:
Backordered
SKU OVRP300HGXX
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate289 m³/h @ 7 barg (170 cfm @ 102 psig)Connection TypeBSPP
Port Size2 inchWidth350.0 mm
Product SeriesOIL-X OVRDrainNot Applicable
TechnologyFiltrationWeight38 kg
Pressure Differential5.1 psi Initial Dry, 100% FlowOperating Pressure15 to 232 psig
Compatible ElementP300OVRDivisionGas Separation and Filtration Division EMEA
Filter TypeAdsorption:<br/>Oil Vapour ReductionDepth534.0 mm
ApplicationCompressed Air and Nitrogen Gas ApplicationsResidual Oil Content≤0.003 mg/m³ / ≤0.003 ppm(w) at system operating temperature and when corrected to match system conditions.
Specifications MetFully tested - In accordance with ISO8573-5<br/>Filtration performance independently validated - by Lloyds Register. <br/> <br/>PED 2014/68/EU Fluid Group II.IndustryIndustrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Height39.3 inchOperating Temperature35 to 122 °F
BrandPARKERMicron Ratingn/a
DivisionGas Separation and Filtration Division EMEAProduct TypeCompressed Air Filter
Element Change Interval12 months when sized to correct operating temperature and system conditions.
