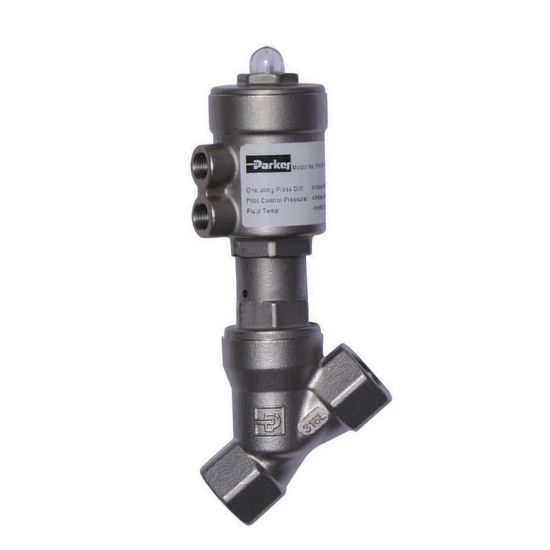

PA Series Angle Seat Valves - PA10C2N3R032S

Name: PA Series Angle Seat Valves - PA10C2N3R032S
SKU: PA10C2N3R032S

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.

Availability:

Backordered

SKU PA10C2N3R032S

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Size	3/8 inch	Function	2-Way
Body Material	316L Stainless Steel	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Maximum Steam Pressure	N/A	Minimum Pilot Pressure	73 - 87 psi
Actuator Housing Material	304 Stainless Steel	Maximum Operating Pressure	87 psi
Brand	PARKER	Technology	Fluid & Gas Handling
Division	Fluid Control Division	Seal Material	PTFE
Maximum Operating Temperature	140 °F	Connection Type	NPT
Body Material	316L Stainless Steel	Function	2-Way
Connection Size	3/8 inch	For Fluid Type	and Liquids
Specifications Met	European Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1	Maximum Operating Pressure	87.0 psi
Division	Fluid Control Division	Configuration	Normally Closed - Under Seat Anti-Waterhammer
Product Type	Angle Valve	Product Style	Pneumatic - On/Off Compact
Materials of Construction	304 Stainless Steel (Actuator Housing)	Orifice Size	0.51
Signal Input	n/a	Actuator Size	32 mm
Actuation Type	Air Pilot	Flow Coefficient	5.5 Cv
Maximum Pilot Pressure	145 psi	Minimum Pilot Pressure	73 - 87 psi
Maximum Fluid Temperature	356 °F	Minimum Operating Pressure	0 psi
