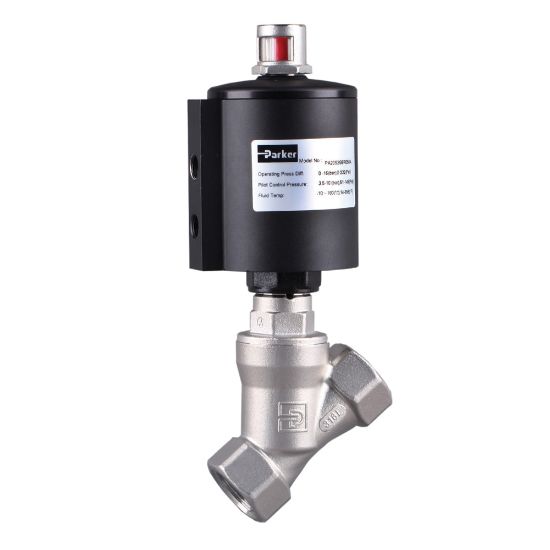

Picture of PA Series Angle Seat Valves - PA10S3N3S050A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PA Series Angle Seat Valves - PA10S3N3S050A

2-way pneumatically-actuated Angle Seat Valves (ASV) available in on/off and proportional control models. Optional position feedback technologies are also available.
Availability:
Backordered
SKU PA10S3N3S050A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size3/8 inchFunction2-Way
Body Material304 Stainless SteelConfigurationNormally Open - Under Seat
Maximum Steam Pressure130 psiMinimum Pilot Pressure50.8 psi
Actuator Housing MaterialAluminiumMaximum Operating Pressure232 psi
BrandPARKERTechnologyFluid & Gas Handling
DivisionFluid Control DivisionFunctionNormally Open
Seal MaterialPTFEMaximum Operating Temperature140 °F
Connection TypeNPTConnection Size3/8 inch
For Fluid TypeLiquidsBody Material304 Stainless Steel
Specifications MetEuropean Pressure Equipmemt Directive 2014/68/EU in accordance with Annex II, Category II, Group 2, Module A1Maximum Operating Pressure232.0 psi
DivisionFluid Control DivisionConfigurationNormally Open - Under Seat
Product TypeAngle ValveProduct StylePneumatic - On/Off
Materials of ConstructionAluminium (Actuator Housing)Orifice Size0.51
Signal Inputn/aActuator Size50 mm
Actuation TypeAir PilotFlow Coefficient5.5 Cv
Maximum Pilot Pressure145 psiMinimum Pilot Pressure50.8 psi
Maximum Fluid Temperature356 °FMinimum Operating Pressure0 psi
