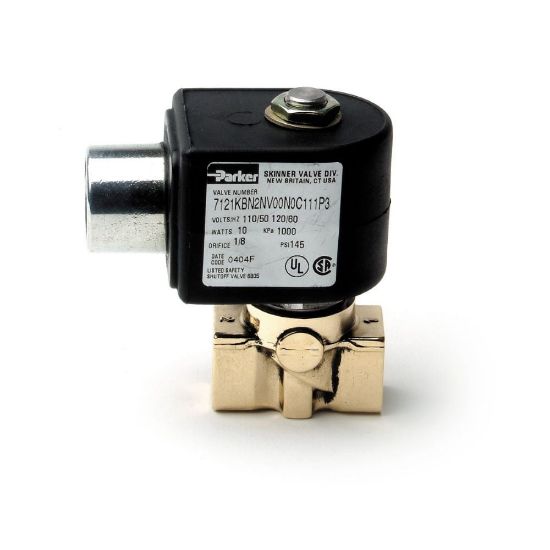

Picture of Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 7121KBN3UV00N0C111Q3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valves - 7121KBN3UV00N0C111Q3

Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
Availability:
Backordered
SKU 7121KBN3UV00N0C111Q3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBRASSCoil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)220/50-240/60Seal MaterialFKM
Power (Watts)10 Watt (AC)Flow Factor 1 (Cv)0.83
Orifice 1 Size (inch)7/16Maximum Pressure Differential (psi)55 psi (AC)
Port Size3/8Port TypeNPT
Body MaterialBrassDivisionFluid Control Division
MediaGeneral Purpose for AirFunctionNormally Closed (NC)
Coil Type1/2" NPT Conduit, 18" Leads, Class F, NEMA 4XValve Type2-Way
Input Voltage220/50 to 240/60Actuation TypeDirect Acting
Orifice 2 Sizen/aNumber of Ports2
Flow Coefficient 2n/aCoil Specifications MetNEMA 4X
Minimum Fluid Temperature0Minimum Pressure Differential0
Seal MaterialFKMMaximum Fluid Temperature185
Power Consumption10 W (AC)Product Series7000 Series
Maximum Pressure Differential55 psi (AC)Orifice 1 Size7/16
Flow Coefficient 10.83
