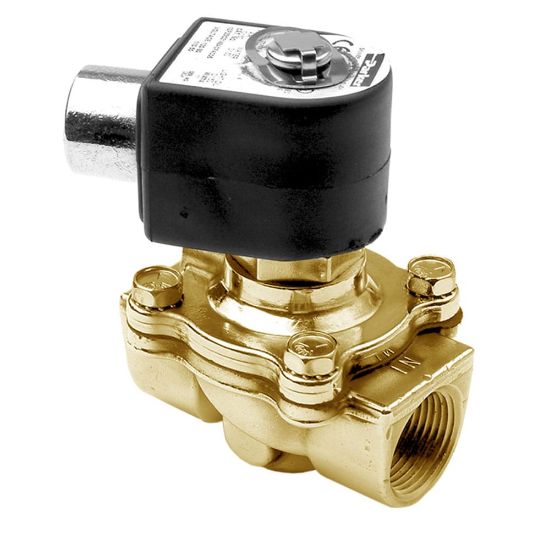

Parker 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves - 72228BN5VV00N0C111C1

Name: Parker 2-Way Normally Open, 3/4" NPT General Purpose Solenoid Valves - 72228BN5VV00N0C111C1
SKU: 72228BN5VV00N0C111C1

Parker 2-Way Normally Open, 3/4" NPT Solenoid Valves provide operating pressures of 150 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 72228BN5VV00N0C111C1

POR

Qty:

Products specifications

Attribute name	Attribute value
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	12 VDC
Seal Material	FKM	Maximum Pressure Differential (psi)	150 psi (DC)
Power (Watts)	10 Watt (DC)	Flow Factor 1 (Cv)	5
Orifice 1 Size (inch)	19/32	Port Type	NPT
Port Size	3/4	Body Material	Brass
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Open (NO)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type	2-Way	Input Voltage	12.0
Orifice 2 Size	n/a	Number of Ports	2
Flow Coefficient 2	n/a	Coil Specifications Met	NEMA 4X
Minimum Fluid Temperature	0	Minimum Pressure Differential	0
Seal Material	FKM	Actuation Type	Direct Lift
Maximum Pressure Differential	150 psi (DC)	Maximum Fluid Temperature	185
Product Series	7000 Series	Power Consumption	10 W (DC)
Orifice 1 Size	19/32	Flow Coefficient 1	5

Product resources

Literature and Reference Materials

Tube Seal (PDF)
