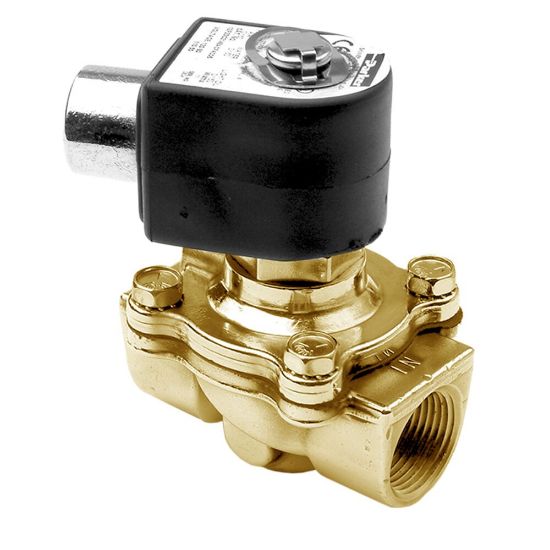

Parker 2-Way Normally Open, 3/8" NPT General Purpose Solenoid Valves - 06F23O2140ACFPH01

Name: Parker 2-Way Normally Open, 3/8" NPT General Purpose Solenoid Valves - 06F23O2140ACFPH01
SKU: 06F23O2140ACFPH01

Parker 2-Way Normally Open, 3/8" NPT Solenoid Valves provide operating pressures of 150 PSI and flow factors of 3 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:

Backordered

SKU 06F23O2140ACFPH01

POR

Qty:

Products specifications

Attribute name	Attribute value
Coil Type	DIN Form A, Class F	Voltage (V)	24/60
Media	General Purpose for Air	Function	Normally Open (NO)
Coil Type	DIN Form A, Class F	Port Size	3/8
Port Type	NPT	Body Material	Brass
Input Voltage	24/60	Seal Material	NBR
Actuation Type	Hung Diaphragm	Power Consumption	11 W (AC)
Division	Fluid Control Division	Maximum Fluid Temperature	150
Maximum Pressure Differential	150 psi (AC)	Minimum Pressure Differential	0
Valve Type	2-Way	Orifice 1 Size	0.625
Orifice 2 Size	n/a	Product Series	Gold Ring Series
Number of Ports	2	Flow Coefficient 1	3
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Fluid Temperature	0
