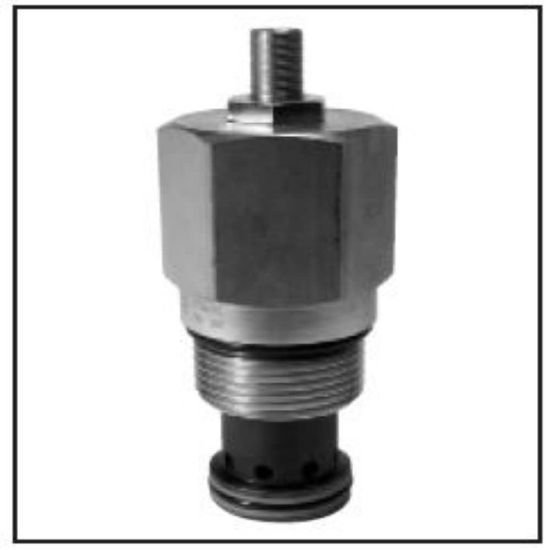

Pilot Operated Relief Valves - A06G2PTV

Name: Pilot Operated Relief Valves - A06G2PTV
SKU: A06G2PTV

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Availability:

Backordered

SKU A06G2PTV

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Adjustment Mechanism	Tamper Resistant
Pressure Control Range	145-6000 PSI, 10-420 BAR	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	106 GAL/MIN, 400 L/MIN	Maximum Operating Temperature	400
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Valve Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Operating Temperature	-15 to 400	Valve Material	Steel (all parts)
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	6000
Configuration	Pressure Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Maximum Pressure Setting	6000
Division	Mobile Hydraulic Systems Division Europe	Operation Type	Automatic
Reseat Pressure	n/a	Adjustment Mechanism	Tamper Resistant
Maximum Tank Pressure	6000	Pressure Control Range	145 to 6000
Standard Setting Pressure	2900	Pressure Control Sensitivity	800 psi Per Turn
Maximum Inlet Pressure Rating	6000	Function	Pilot Operated
Leak Rate	100 cm3/min @ 1450 Psi (100 bar)	Weight	1.26
Flow Rate	106	Cavity Size	C16-2
Maximum Flow Rate	106	Installation Torque	74
