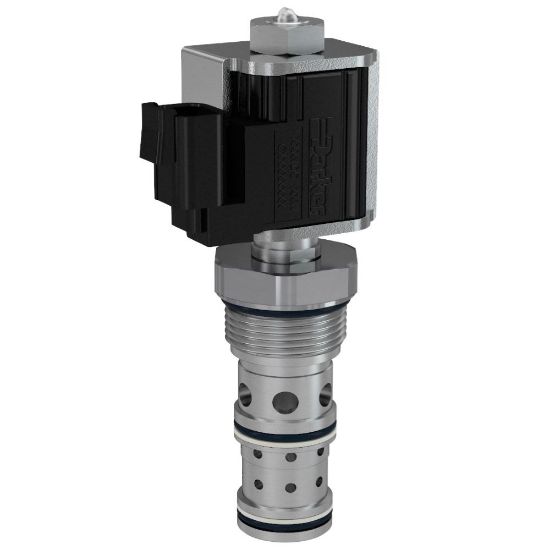

Pressure Compensated Proportional Poppet Valves - FAPC161CV

Name: Pressure Compensated Proportional Poppet Valves - FAPC161CV
SKU: FAPC161CV

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAPC161CV

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Configuration	Normally Closed
Maximum Flow Rate	22 GAL/MIN, 83 L/MIN	Actuation Type	Electrical
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Maximum Operating Pressure	3000	Flow Rate	22
Weight	1.08	Operation Type	Solenoid Operated
Coil Nut Tightening Torque	3	Cavity Size	C16-3
Maximum Inlet Pressure Rating	3000	Maximum Flow Rate	22
Configuration	Normally Closed	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-15 to +400	Frequency	100-400
Maximum Operating Temperature	+400	Leak Rate	5 @ 3000 PSI (210 BAR)
Function	Proportional Pressure Compensated Flow Control/Regulator	Installation Torque	80-85
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18
Minimum Pressure Differential	500	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC
