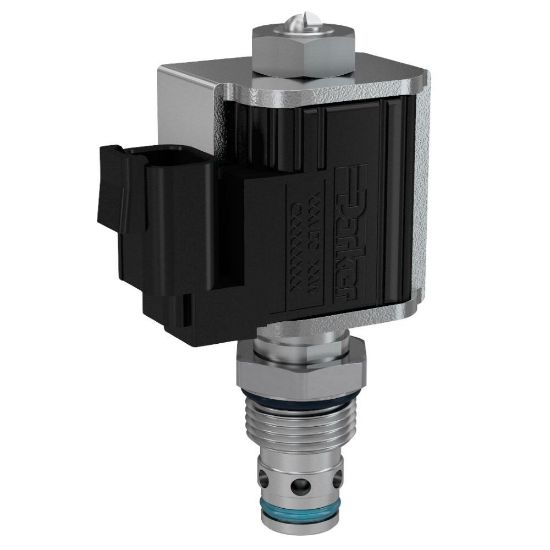

Proportional Poppet Valves - FAP101CHMN

Name: Proportional Poppet Valves - FAP101CHMN
SKU: FAP101CHMN

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU FAP101CHMN

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Flow Rate	13 GAL/MIN, 45 L/MIN	Actuation Type	Electrical
Seal Material	Nitrile	Weight	0.42
Body Material	n/a	Minimum Operating Temperature	-30
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	13
Maximum Operating Pressure	3000	Override Functionality	n/a
Cavity Size	C10-2	Maximum Inlet Pressure Rating	3000
Flow Direction	Side to Nose (2 - 1)	Function	Proportional Flow Control/Regulator
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Variation of Closing Point	N/A
Operating Temperature	-30 to +250	Frequency	100-400
Hysteresis	< 15%	Maximum Operating Temperature	+250
Minimum Pressure Differential	300	Leak Rate	5 @ 3000 PSI (210 BAR)
Installation Torque	25	Configuration	Normally Closed, High Flow
Maximum Flow Rate	10.5	Coil Type	5/8" Super Coil Low Watt (CAS)
Power Consumption	18	Coil Nut Tightening Torque	1
Variation of Opening Point	20-25% of Input Signal
