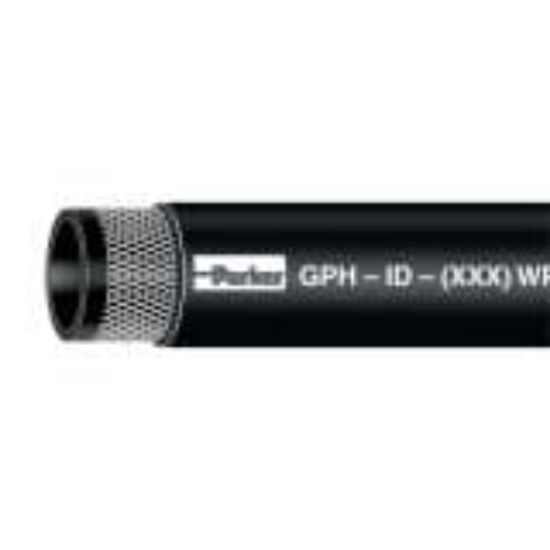

Picture of PVC General Purpose Hose, Series GPH - GPH-10BLK250

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PVC General Purpose Hose, Series GPH - GPH-10BLK250

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH
Availability:
Backordered
SKU GPH-10BLK250
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
ColorBlackHose I.D. (inch)5/8
Maximum Working Pressure (psi)300MediaAir
DivisionHose Products DivisionWeight0.22
Maximum Operating Pressure300Package TypeCoil
Maximum Operating Temperature150Cover ColorBlack
Minimum Operating Temperature-15Minimum Bend Radius2.5
ApplicationPVC HoseCover MaterialPVC
Cover StructureSmoothHose Reinforcement Material2 Plies of Textile
Inside Diameter5/8Hose Inner Tube MaterialBlack
Length per Package250Outside Diameter0.910
Compatible FittingHY SeriesVacuum Pressure Rating10
