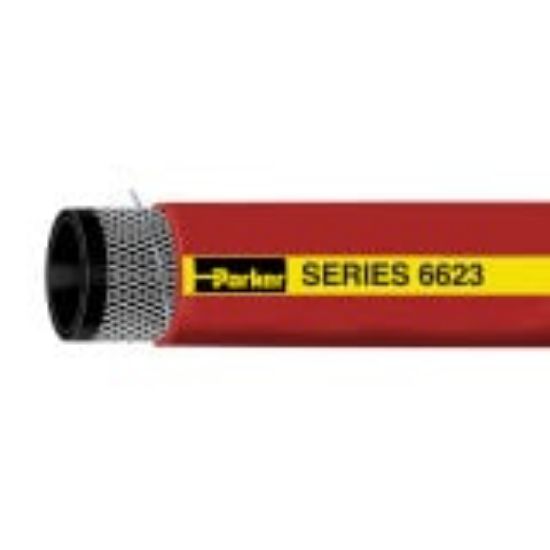

Picture of Silicone High Temperature Coolant Suction Hose, Series 6623 - 6623-1125130

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Silicone High Temperature Coolant Suction Hose, Series 6623 - 6623-1125130

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU 6623-1125130
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1-1/8Minimum Burst Pressure (psi)390
DivisionHose Products DivisionPackage TypeCoil
Cover ColorRedHose Inner Tube MaterialBlack
Inside Diameter1-1/8Outside Diameter1.500
ApplicationEngineMediaCoolants
Weight0.46Specifications MetISO 1307.0
Vacuum Pressure Rating17.7Maximum Operating Pressure130
Maximum Operating Temperature392Minimum Operating Temperature-76
Cover MaterialSiliconeCover StructureGlossy
Length per Package130Minimum Bend Radius4.1
Hose Reinforcement MaterialMultiple Plies of High Temperature Textile with Wire HelixDesign Factor3:1
Minimum Burst Pressure390
