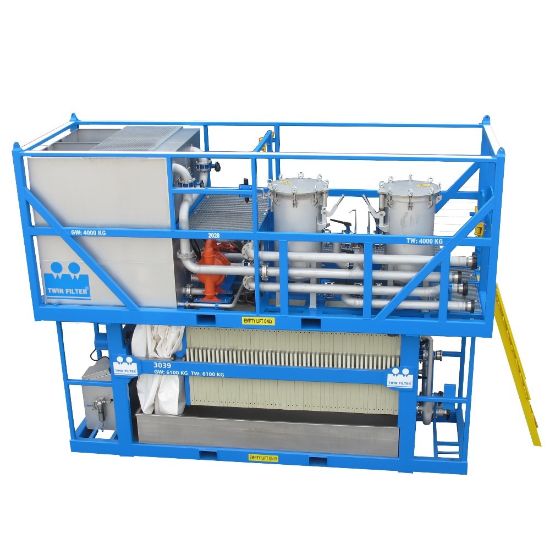

Stackable combination unit TDW- Slurry skid suitable for Filter Press - TDW610-50-40-0-4-2

Name: Stackable combination unit TDW- Slurry skid suitable for Filter Press - TDW610-50-40-0-4-2
SKU: TDW610-50-40-0-4-2

Parker Twin Filter offers a complete solution stackable filtration skid. The unit consists of a pre-coat and dosing SLURRY SKID and a DUAL VESSEL CARTRIDGE UNIT this unit can be placed on our standard heavy duty FILTER PRESS.

Availability:

Backordered

SKU TDW610-50-40-0-4-2

POR

Qty:

Products specifications

Attribute name	Attribute value
Combined Current	Combination Unit	Filter Type	TDW610
Width	6.6 ft	Brand	Twin Filter
Division	Hydraulic & Industrial Process Filtration Division EMEA	Maximum Operating Pressure	'101.5 psi (7 bar) psi
For Fluid Type	'Fluid group 2 (non-hazardous fluids)	Specifications Met	Frame: DNV 2.7-1 (2013), EN/12079
Length	'18.8 ft / 5,73 m	Connection Size	6 inch Union Fig. 100 M/F SS316L with O-ring Seal
Maximum Operating Temperature	70.0 °C at 72.5 Psi (5 bar) in combination with Filter Press.	Materials of Construction	Frame: Carbon Steel (Powder Coated RAL 5015 others on request)<br/>Wetted parts: SS316L
Industry Application	Service Company	Product Type	Filtration
Maximum Flow Rate	15 Bbl/min	Height	Only Stackable unit : 7.6 ft (2.33 m)<br/>
Weight	Only Stackable unit: 8818.5 (4000)<br/> lb (Empty)
