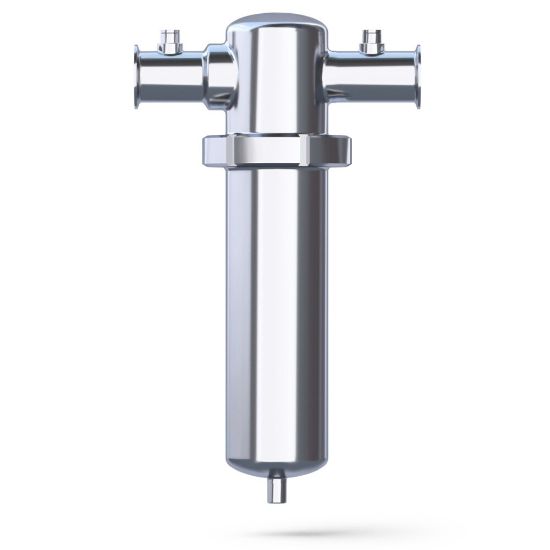

Picture of TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection - TGE316/16CF-C/A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection - TGE316/16CF-C/A

ATEX approved stainless steel filters for filtration of technical and industrial gases in applications up to 16 bar(g).
Availability:
Backordered
SKU TGE316/16CF-C/A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron RatingDown to 0.01 micronConnection TypeClamp ASME BPE 2"
Filter TypeHigh Efficiency CoalescingFlow Rate780 m³/h @ 7 barg (459 cfm @ 102 psig)
Filter TypeStainless SteelBrandPARKER
DivisionGas Separation and Filtration Division EMEATechnologyFiltration
Filter Efficiency Rating99.99999 %DivisionGas Separation and Filtration Division EMEA
Operating Pressure232.0 psig MaximumWidth11 inch
Product TypeNatural Gas FilterResidual Oil Content≤ 0.01 mg/m³
Compatible ElementTE14CFHeight9.2 inch
Product SeriesTGE ATEX SeriesApplicationFiltration of Compressed Natural Gas
Product resources

Literature and Reference Materials
