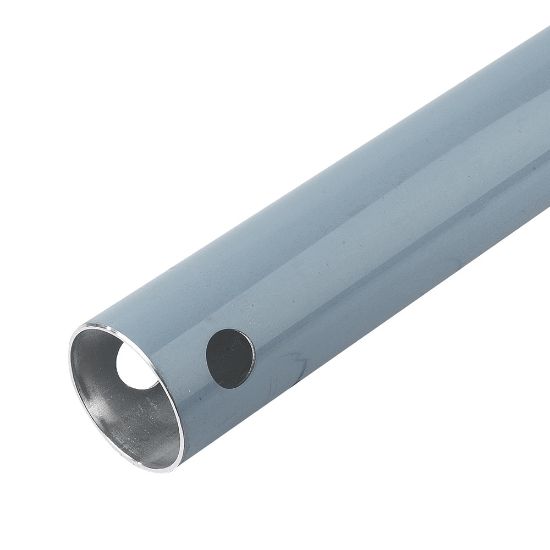

Transair® Aluminum Pipe - 1003A63 06

Name: Transair® Aluminum Pipe - 1003A63 06
SKU: 1003A63 06

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU 1003A63 06

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	3	Length (ft)	10
Pipe O.D. (mm)	63	Pipe O.D. (inch)	2-1/2
Color	Gray	Color	Gray
Weight	3,140 kg	Application	Industrial Gas
Specifications Met	QUALICOAT	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	232 psi
Maximum Operating Temperature	185 °F	Minimum Operating Temperature	-4 °F
Product Type	Rigid Aluminum Pipe	Brand	PARKER
Industry	General Industrial	Technology	Fluid & Gas Handling
Outside Diameter	63 mm	Shape	Straight
Length	10 ft	Division	Low Pressure Connectors Europe Division
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Quantity per Box	4
Size	2-1/2 inch	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)
