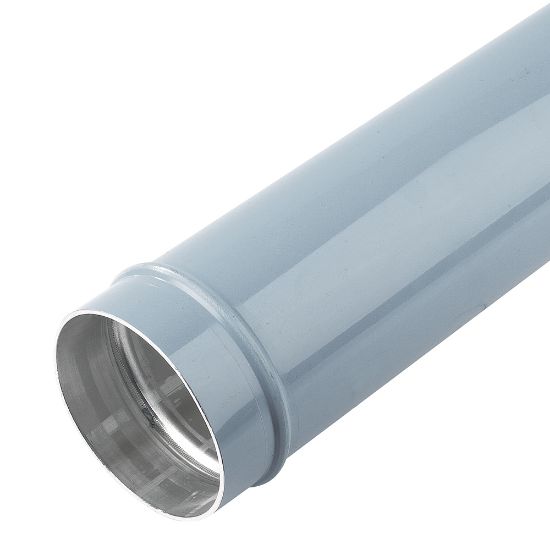

Transair® Aluminum Pipe - TA06 L8 06

Name: Transair® Aluminum Pipe - TA06 L8 06
SKU: TA06 L8 06

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA06 L8 06

POR

Qty:

Products specifications

Attribute name	Attribute value
Color	Gray	Pipe O.D. (inch)	6
Length (m)	6	Length (ft)	20
Pipe O.D. (mm)	168.3	Configuration	Pipe to Pipe
Size	168.3 mm	Weight	29,412 kg
Length	6 m	Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	185 °F	Outside Diameter	168 mm
Division	Low Pressure Connectors Europe Division	Body Material	Treated Aluminum
Shape	Straight	For Fluid Type	Air
Product Type	Rigid Aluminum Pipe	Industry	General Industrial
Color	Gray	Assembly Time	0.15 Hours
Vacuum Pressure Rating	0.03 inch-Hg	Application	Vacuum
Maximum Operating Pressure	13 bar 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html	Connection 1 Type	Pipe
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Brand	PARKER	Technology	Fluid & Gas Handling
Specifications Met	ASME B31.1 - 31.9
