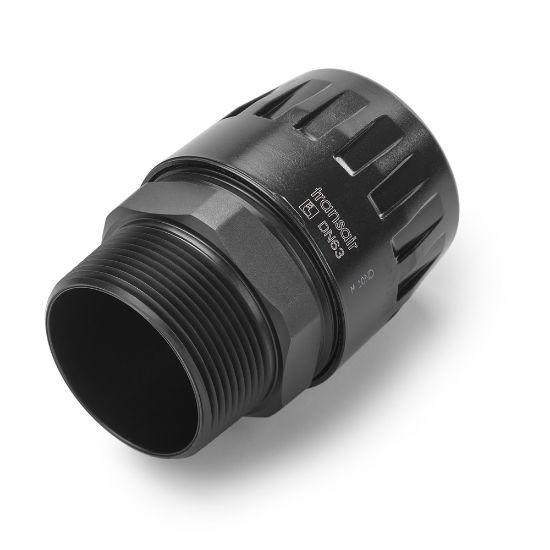

Transair® Fittings for Aluminum Pipe - 6605 63 41

Name: Transair® Fittings for Aluminum Pipe - 6605 63 41
SKU: 6605 63 41

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6605 63 41

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	63	Pipe O.D. (inch)	2-1/2
Silicone Free	Yes	Connection Thread Size (inch)	2-1/2
Product Style	Male NPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	Transair
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Shape	Straight	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Division	Fluid System Connectors Division
Industry	General Industrial	Specifications Met	EN 755.2
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Technology	Pneumatics	Body Material	Treated Aluminum
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Connection 2 Type	Male NPT	Quantity per Box	2
Connection 1 Size	2-1/2 inch	Connection 2 Size	2-1/2 inch
Application	Inert Gas	Weight	2.98 lb
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Product Style	Stud Fitting
