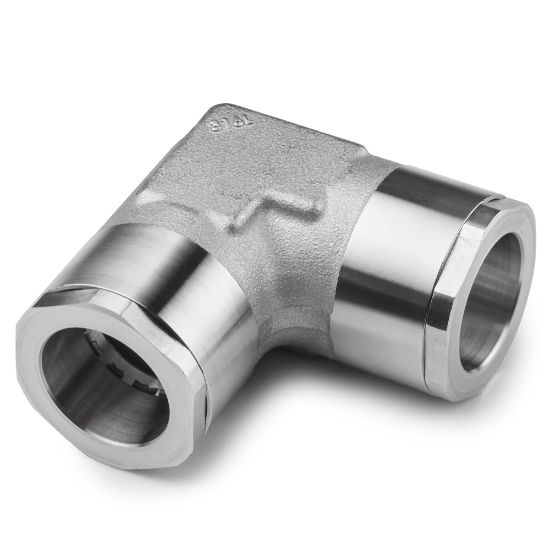

Transair® Fittings for Stainless Steel Pipe - RF02 N7 02

Name: Transair® Fittings for Stainless Steel Pipe - RF02 N7 02
SKU: RF02 N7 02

Transair Fittings for Stainless Steel Pipe are quick and easy to install. Available in EPDM and FKM seals for maximum chemical compatibility.

Availability:

Backordered

SKU RF02 N7 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	22	Seal Material	FKM
Pipe O.D. 2 (inch)	N/A	Connection Thread Size (inch)	n/a
Shape	316L Stainless 90° Elbow	Pipe O.D. (inch)	3/4
Pipe O.D. 2 (mm)	N/A	Pipe Outside Diameter	3/4 inch
Division	Fluid System Connectors Division	Connection 1 Size	3/4 inch
Body Material	Stainless Steel 316	Vacuum Pressure Rating	0.03 inch-Hg
Connection 1 Type	Pipe	Seal Material	FKM
Maximum Operating Temperature	90 °C	Division	Low Pressure Connectors Europe Division
Connection 2 Type	Pipe	Assembly Time	0.04 Hours
Maximum Operating Pressure	145 psi	Product Style	Elbow
Shape	Elbow 90°	Application	Process Water
Configuration	Pipe to Pipe	Weight	0.66 lb
Brand	Transair	Quantity per Box	1.0
Product Type	Elbow	Connection 2 Size	22 mm
Minimum Operating Temperature	-20 °C

Product resources

Literature and Reference Materials

Transair Master Catalog (PDF)

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
