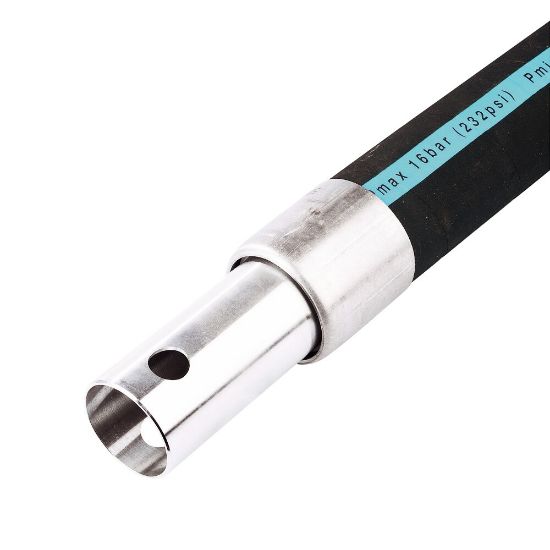

Picture of Transair® Flexible Hose for Aluminum Pipe - 1001E50 00 09

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Flexible Hose for Aluminum Pipe - 1001E50 00 09

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.
Availability:
Backordered
SKU 1001E50 00 09
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Length (m)1.30Length (ft)4ft 3in
Pipe O.D. (mm)50Pipe O.D. (inch)2
ColorBlackWeight3,400 kg
ApplicationIn Plant PneumaticSpecifications MetEN 573.3
DivisionLow Pressure Connectors Europe DivisionVacuum Pressure Ratingn/a Please consult us
Maximum Operating Pressure232 psiMaximum Operating Temperature140 °F
Minimum Operating Temperature-20 °CProduct TypePneumatic Hose
BrandPARKERIndustryGeneral Industrial
Flow Raten/aTechnologyPneumatics
Inside Diameter50 mmOutside Diameter2.000 inch
Connection TypePipeShapeStraigth
Length4' 3'' ftDivisionLow Pressure Connectors Europe Division
Assembly Time0.1 HoursBody MaterialNBR (Hose & Coating)
ConfigurationPipe to PipeProduct StyleHose Assemblies
Connection Size50 mmQuantity per Box1.0
Minimum Bend Radius11,000 inch
