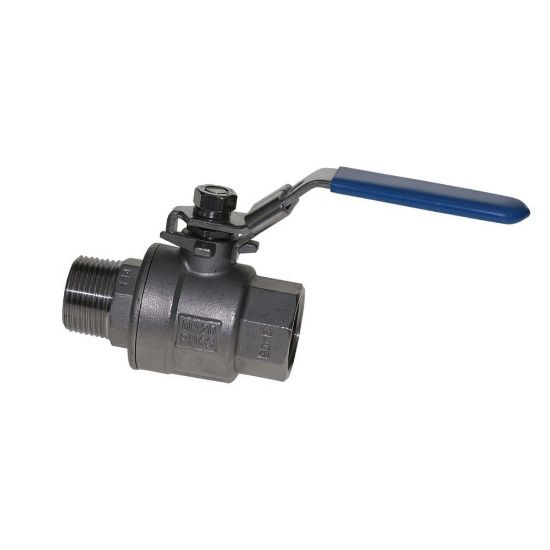

Picture of Transair® Valves for Stainless Steel Pipe - VF04 00 06

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Valves for Stainless Steel Pipe - VF04 00 06

Transair Valves are designed for quick and easy integration into a Transair stainless steel system. Placing valves at strategic points allows for easy localized isolation.
Availability:
Backordered
SKU VF04 00 06
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Material316L Stainless SteelStyleBall Valve
Pipe O.D. (mm)N/APipe O.D. (inch)N/A
Connection Thread Size (inch)3/4Seal MaterialFKM
Vacuum Pressure Rating1 mbarDivisionLow Pressure Connectors Europe Division
ConfigurationPort to PortQuantity per Box1.0
Connection 1 TypeFemale BSPPConnection 2 TypeFemale BSPT
ApplicationProcess WaterConnection 1 SizeG 3/4 inch
Body Material316L Stainless SteelMaximum Operating Pressure145 psi
BrandTransairWeight0.42 kg
Assembly Time0.10 HoursConnection 2 SizeR 3/4 inch
Minimum Operating Temperature-20 °CDivisionLow Pressure Connectors Europe Division
Product TypeBall ValveMaximum Operating Temperature194 °F
