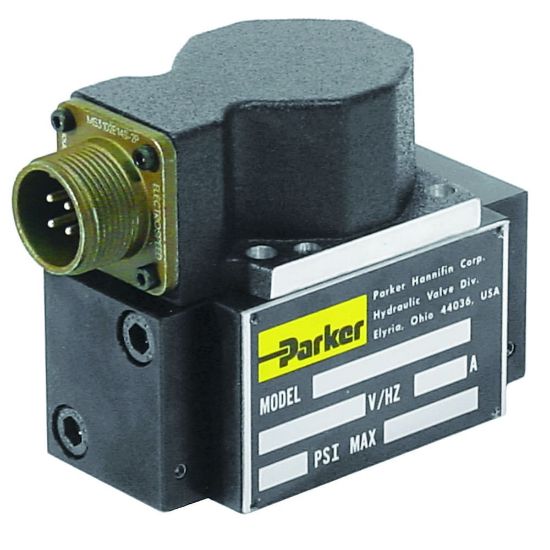

Picture of Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series - SE05HAAAANA1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series - SE05HAAAANA1

Parker’s SE05, SE10, SE15 & SE2N series valves are two stage, 4-way, flapper and nozzle style servovalves.
Availability:
Backordered
SKU SE05HAAAANA1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Mounting0.625in; 15.8mmFlow Rate (gpm)1
Maximum Operating Pressure3000 PSISize15.88 mm
Operating Pressure3045Product StyleServovalve
Minimum Operating Temperature-22Maximum Flow Rate4
Weight2.2Additional OptionsConsult catalog for additional features
Response TimeHighResistance40 Ohms; 60 mA (Parallel); 30mA (Series)
Actuation TypeHydraulic PressureSeal MaterialNitrile
Maximum Operating Temperature+266DivisionHydraulic Valve Systems Division
Maximum Operating Pressure3000Materials of ConstructionAluminum
Body MaterialAluminum
