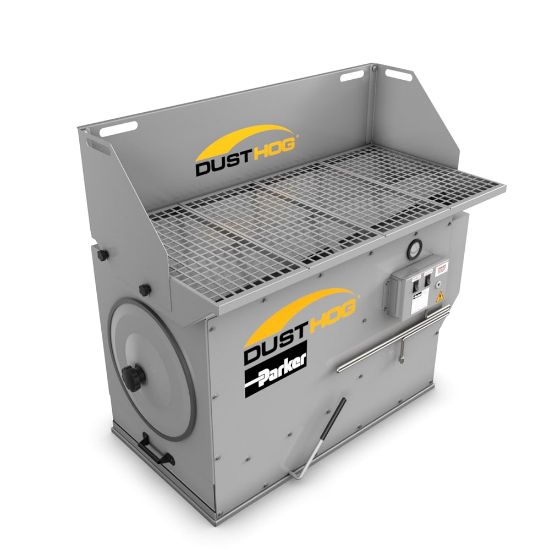

VB-1500 Downdraft Dust Collector - VB-1500-C33USH

Name: VB-1500 Downdraft Dust Collector - VB-1500-C33USH
SKU: VB-1500-C33USH

A source capture downdraft dust collector with an integrated open metal grate benchtop to remove dust, fumes or particles. Simply apply input power, a compressed air source and press start. Filter cartridge and accessories ordered separately.

Availability:

Backordered

SKU VB-1500-C33USH

POR

Qty:

Products specifications

Attribute name	Attribute value
Input Power	230V/3P/60H	Filter Included	No
Filter Area	26.0	Color	Hog Gray
Brand	DustHog	Inlet Port Size	Metal Tabletop Work Grid
Current	7.6 amp	Weight	485
Paint Type	Powder Coated	Air Consumption	1.3
Motor Power Output Rating	3	Depth	30-1/4
Product Series	VB 1500	Filter Material	Media
Height	46-13/16	Division	Industrial Gas Filtration and Generation Division
Air Flow Rate	1500	Sound Level	77
Equipment Type	Downdraft Media Filter Unit	Application	Dust, Fume, Smoke
Width	52-34/	Body Material	Mild Steel
Options	Sold seperately: Filter media, After Filter, Wheels

Product resources

Literature and Reference Materials
