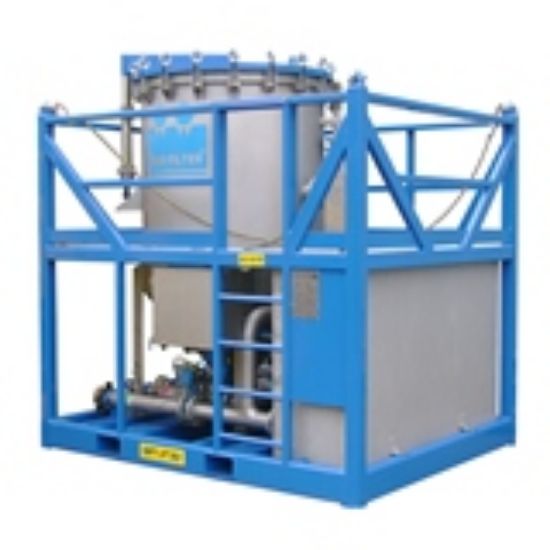

Picture of Vertical Pressure Leaf DE Filter Unit - VPL420

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Vertical Pressure Leaf DE Filter Unit - VPL420

The Vertical Pressure Leaf Diatomaceous Earth Filter Unit is self-contained and equipped with all necessary auxiliaries to perform effective filtration results.
Availability:
Backordered
SKU VPL420
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Area ft2/m2420 ft2 / 39 m2DivisionIndustrial Process Filtration Division
Width7.2BrandTwin Filter
Industry ApplicationService CompanyMaximum Operating Temperature158.0
Maximum Flow Rate12 Bbl/minEquipment TypeFiltration
Connection Size7 inch Union Fig. 100Maximum Operating Pressure'101.5 psi (7 bar)
Valve Type'4" BFV air operated from control board.Height9.7
Length9.2Weight9040 lb (Empty)
Vessel Size43.3Wetted MaterialSS 316L
Operating FeaturesCentral pneumatic control panel; all main valves are operated by pneumatic actuators.<br/>In/Outlet pressure gauge.<br/>Pressure relief valve.<br/>Flow indicator.<br/>Air operated diaphragm pump for precoating and bodyfeed.Materials of ConstructionFrame: Carbon Steel (Powder Coated RAL 5015 others on request)
