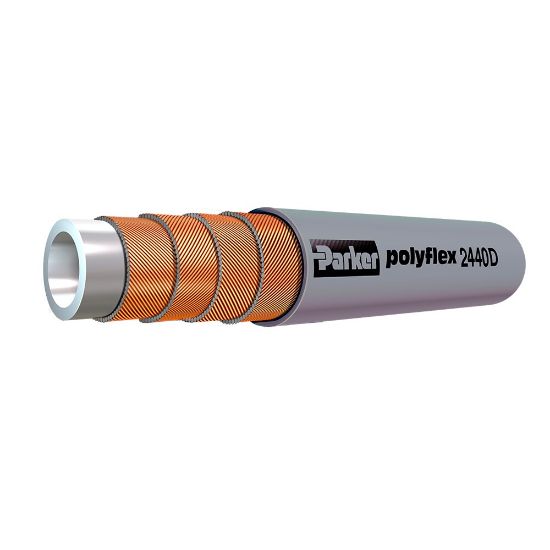

Water Jetting Hose - 2440D/2448D - 2440D-025V37-TC

Parker Tough Cover Ultra High Pressure Water Jetting Hose handles pressures up to 43,000 psi (3000 bar)
Availability:
Backordered
SKU 2440D-025V37-TC
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)5/32NotesSee PFX25-025
Maximum Working Pressure (psi)31,900DivisionParflex Division
MediaChemicalsWeight0.14
ApplicationConstruction EquipmentMinimum Bend Radius4
Cover MaterialPolyamide (PA)Design Factor2.5:1
Maximum Operating Temperature158Specifications MetDIN 1829-2
Minimum Operating Temperature14Hose Inner Tube MaterialPolyoxymethylene (POM)
Compatible FittingLX SeriesMaximum Operating Pressure31900
Inside Diameter5/32Outside Diameter0.410
Hose Reinforcement Material4 Spirals of Maximum Tensile Steel Wire
