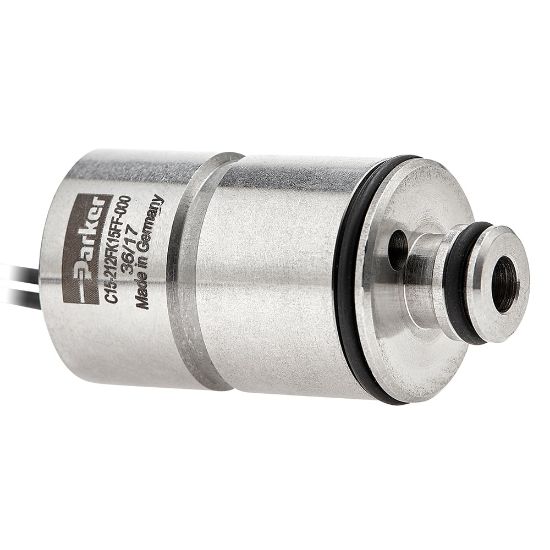

Picture of C15 Miniature Cartridge Solenoid Valve - C15-212FK05FF-000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

C15 Miniature Cartridge Solenoid Valve - C15-212FK05FF-000

The C15 is the mid-size diameter in the C Series cartridge style valves at 15 mm. Available in 2 and 3-way normally closed configurations. This fast and reliable valve is ideal for life science applications.
Availability:
Backordered
SKU C15-212FK05FF-000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Voltage (VDC)12Orifice Size (inch)0.02
Valve Configuration Type2 Way Normally ClosedWetted Materials: Seals (Elastomer)FKM
For Fluid TypeGasesConfigurationn/a
Maximum Operating Pressure145 psiWidth15 mm
Actuation TypeSolenoidDivisionPrecision Fluidics Division
Orifice Size0.5 mmControl MethodHit and Hold
Port ConnectionCartridge SealElectrical Connection3.2" (80 mm) Flying Leads
Body & Stem Base MaterialStainless Steel Series 300 and 400Flow Rate18 SLPM
Maximum Flow Rate18 SLPMHeight1.142 inch
Weight0.78 ozPower Consumption1.1 W Typical
Cycles per Lifetime500 MillionIndustry ApplicationPortable/Transport Ventilators
