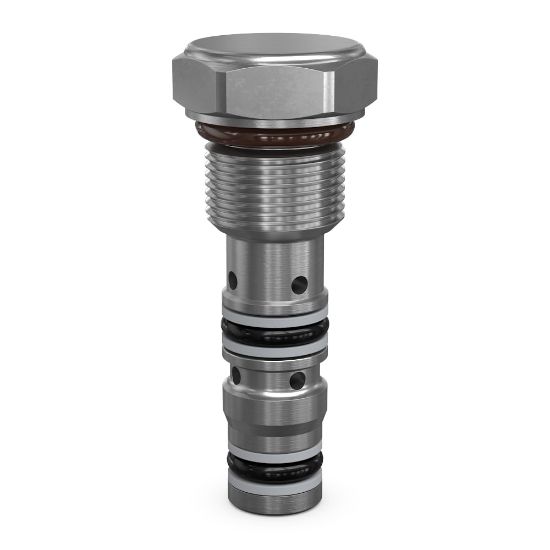

Picture of Cartridge Ball Type Shuttle Valve - CS041BV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cartridge Ball Type Shuttle Valve - CS041BV

Parker's 2-position, 3-way ball type shuttle valves are designed to fit an industry common cavities and allow flows up to 50 lpm (13 gpm) and 420 bar (6000 psi).
Availability:
Backordered
SKU CS041BV
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialFluorocarbonFlow Rate1 GAL/MIN, 3.8 L/MIN
Maximum Inlet Pressure Rating3000 PSI, 207 BARWeight0.04
Maximum Operating Temperature400Seal MaterialFluorocarbon
Body Materialn/aFor Fluid TypeMineral-based Hydraulic Fluids
Operating Temperature-15 to 400DivisionHydraulic Systems Division
Valve MaterialSteel (all parts)Filter Efficiency RatingISO 4406 18/16/13
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-15
Maximum Operating Pressure3000Actuation TypePressure Sensing
Operation TypeAutomaticCavity SizeC04-3
Maximum Flow Rate1Maximum Inlet Pressure Rating3000
Flow Rate1FunctionDiverter
Leak Rate5 drops/min @ 3000 Psi (207 bar)Configuration3-Way Ball Type
Installation Torque6Standard Flow Rate Settingn/a
