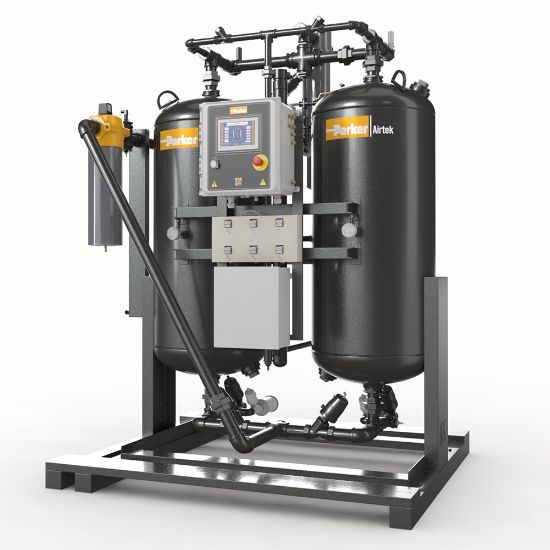

Picture of Externally Heated Desiccant Air Dryer - TWP Series - TWP301BY41NNN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Externally Heated Desiccant Air Dryer - TWP Series - TWP301BY41NNN

Parker Airtek TWP Series Externally Heated Desiccant Air Dryers use heat and the adsorption method to remove moisture from compressed air. Pressure dewpoint of -40°F (-40°C) and flowrate of 200 – 7500 scfm depending on model.
Availability:
Backordered
SKU TWP301BY41NNN
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Flow Rate (cfm)300Pressure Dew Point (F)-40
Electrical Requirements460V/3Ph/60HzConnection Type1 1/2" NPT
Depth27 inchCompatible Prefilter ElementJE-CC0350
Compatible PrefilterJC0350-CCompatible After FilterJC0350-FH
Installed Condensate Drain TypeTimed Solenoid DrainMinimum Ambient Temperature40 °F
BrandAirtekDivisionIndustrial Gas Filtration and Generation Division
Maximum Operating Temperature120 °FMaximum Flow Rate510 m3/hour
Minimum Operating Temperature50 °FMaximum Ambient Temperature120 °F
Purge Pressure Rate21Minimum Operating Pressure80 psi
Maximum Inlet Pressure Rating100 PSICompatible After Filter ElementJE-FC0350-HT
Weight1370 lbHeight87 inch
Maximum Operating Pressure150 psiProduct TypeCompressed Air – Desiccant
Optional AccessoriesPre and After FiltrationWidth43 inch
