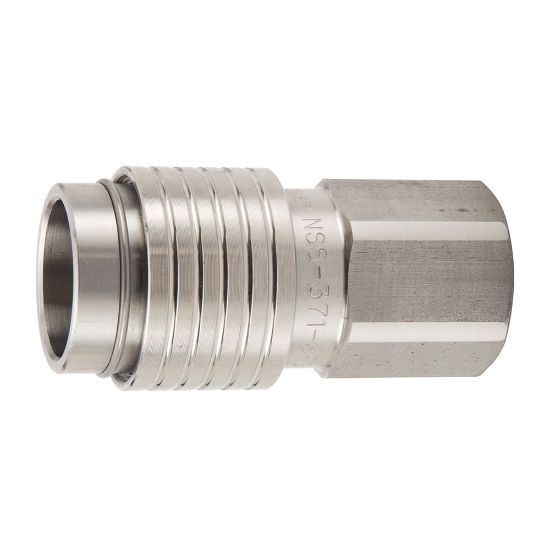

Picture of High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-501-10FO

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Flow, Liquid Cooling, Flat Face Hydraulic Quick Connect Couplings - NSS Series - NSS-501-10FO

Quick connect, flat face hydraulic couplers for liquid cooling and thermal management applications for electronics, servers and supercomputers. Their compact body size and guided alignment save time and frustration when connecting fluid lines.
Availability:
Backordered
SKU NSS-501-10FO
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D.NABody Size (inch)1/2
Connection Thread Size (inch)7/8 - 14 UNFCoupling HalfFemale Coupler
Product TypePush-to-ConnectHex Size1.25
ApplicationThermal ManagementDivisionQuick Coupling Division
Flow Rate12Connection TypeFemale Thread
Minimum Operating Temperature-70.0Maximum Operating Pressure300
Maximum Operating Temperature250.0Body MaterialStainless Steel
Seal MaterialEPDMValve TypeFlat Face
