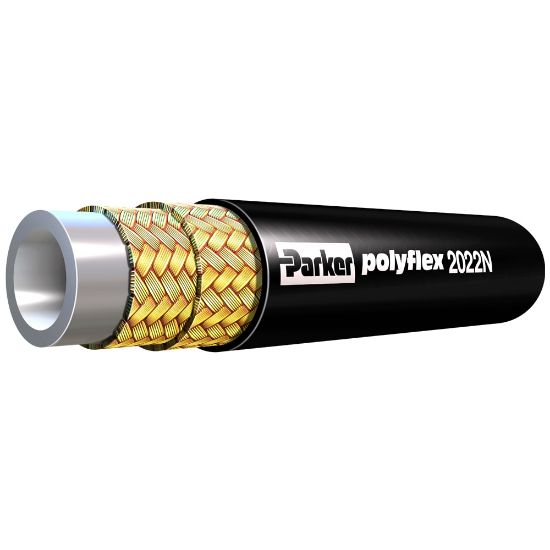

Picture of High Pressure Hydraulic Hose - 2022N - 2022N-04V91-10K

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2022N - 2022N-04V91-10K

Parker 2022N is a 10,000 psi constant pressure hose from Polyflex designed for hydraulic or oil and gas applications.
Availability:
Backordered
SKU 2022N-04V91-10K
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/4Cover MaterialSea water resistant polyurethane
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Maximum Operating Pressure10000 psiSize-4
Inside Diameter1/4 inchDesign Factor4:1
MediaWaterMinimum Bend Radius100 mm
Cover MaterialPolyurethaneHose Inner Tube MaterialPolyamide (PA)
ApplicationWell StimulationSpecifications MetISO 13628-5, Section 7.9
Weight0.09 lb/ftOutside Diameter13.8 mm
Compatible Fitting8X Series Hose guards (HG2022N-4) are required for all hand held applications. Parker Parflex suggests the use of bend restrictors for all assemblies.Hose Reinforcement MaterialBraid of Aramid Fiber
Maximum Operating Temperature55 °CSafety FeaturesMethanol Washed Core Tube.
